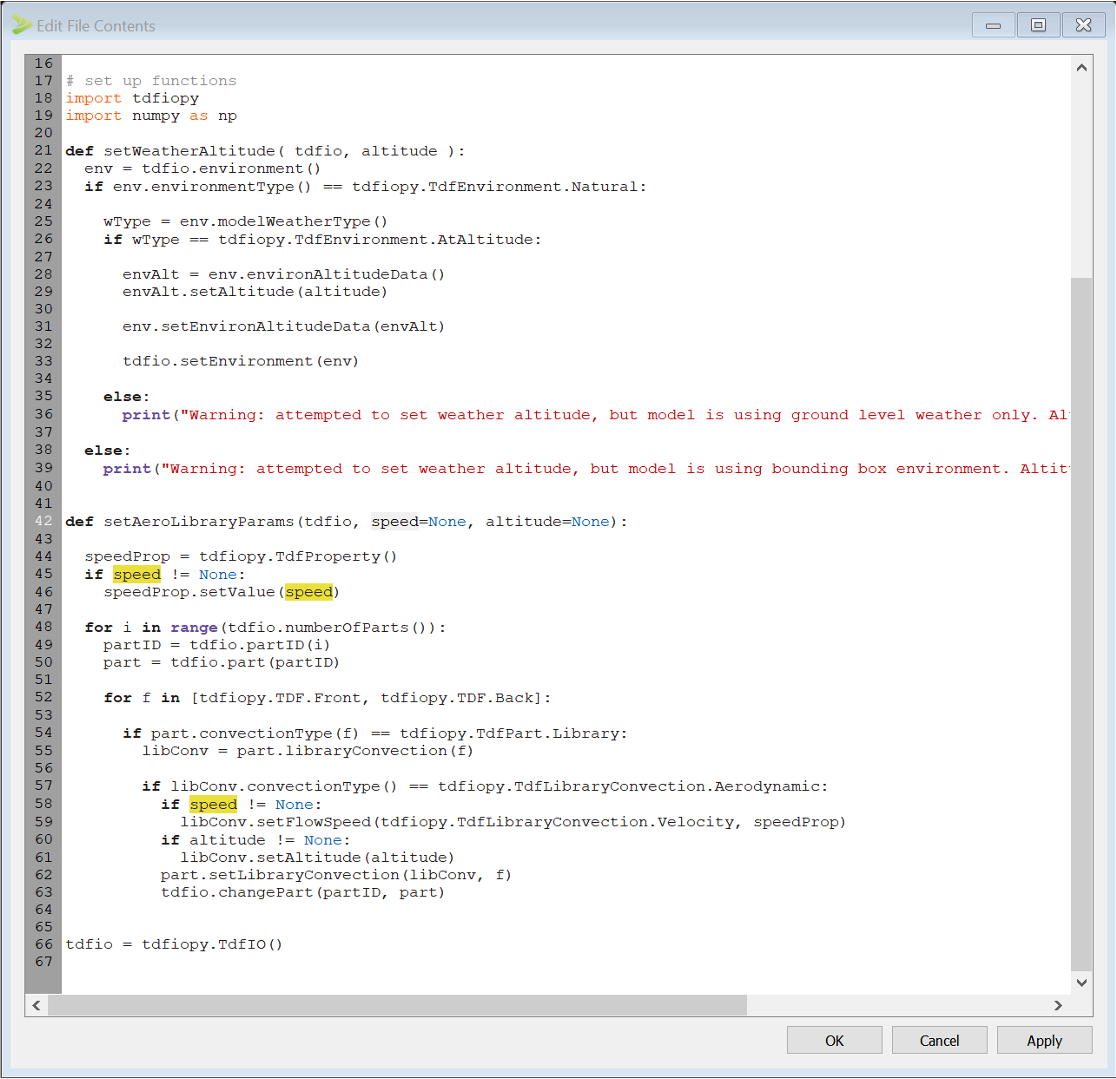

Text editor improvements

The built-in editor used for text files supports:

• Language-specific syntax highlighting
• Auto-completion of variables & language keywords
• Multi-line indentation
• Highlighting the selected word
• Improved find and replace dialog

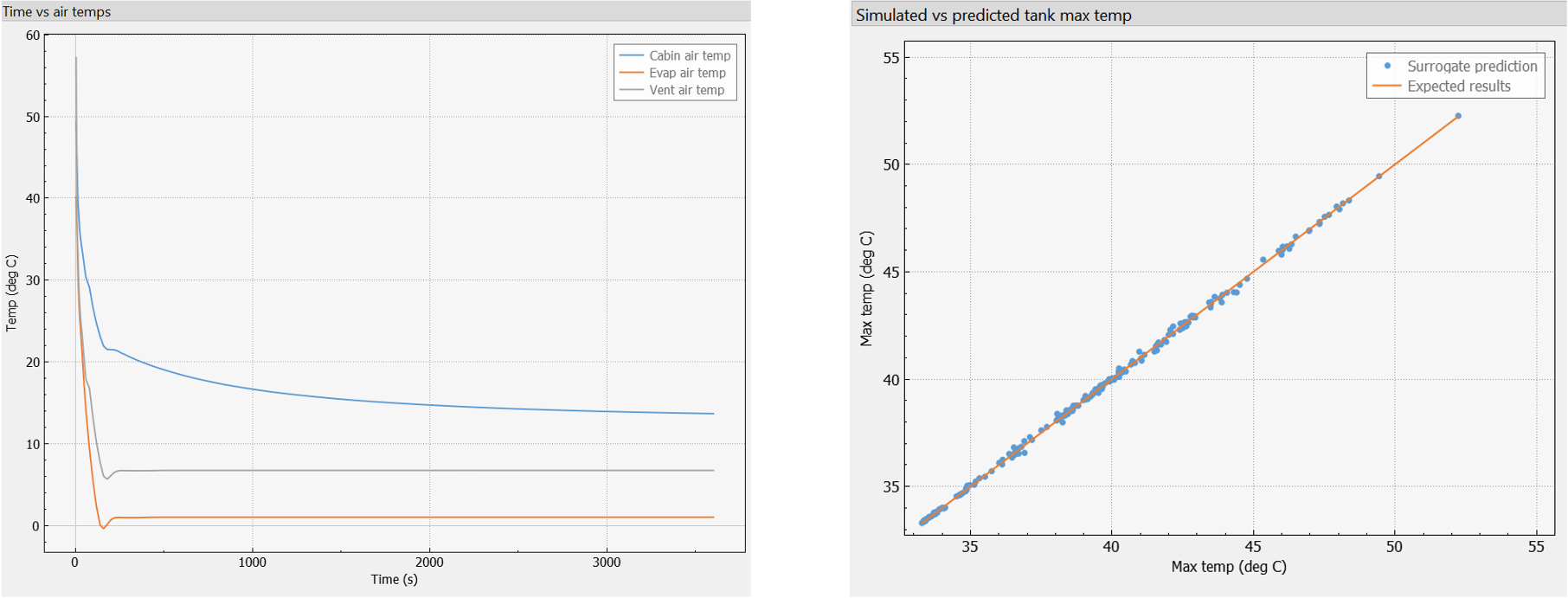

Scatter Plots Updates

Scatter plots have been updated to support:

• Multiple datasets
• Custom formatting: colors, plot type, labels
• v2022.2: data can be defined from monitor history or array variables

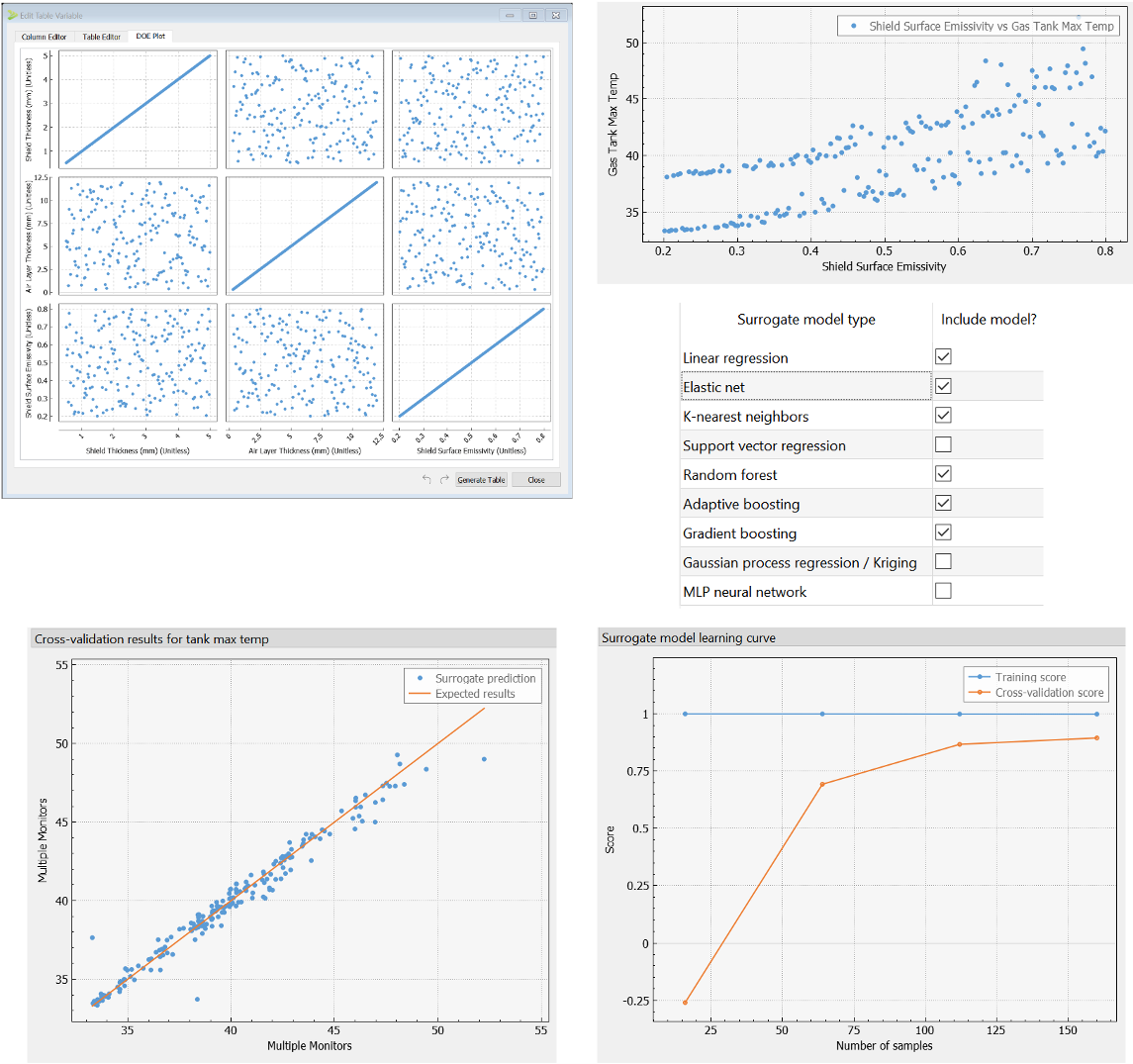

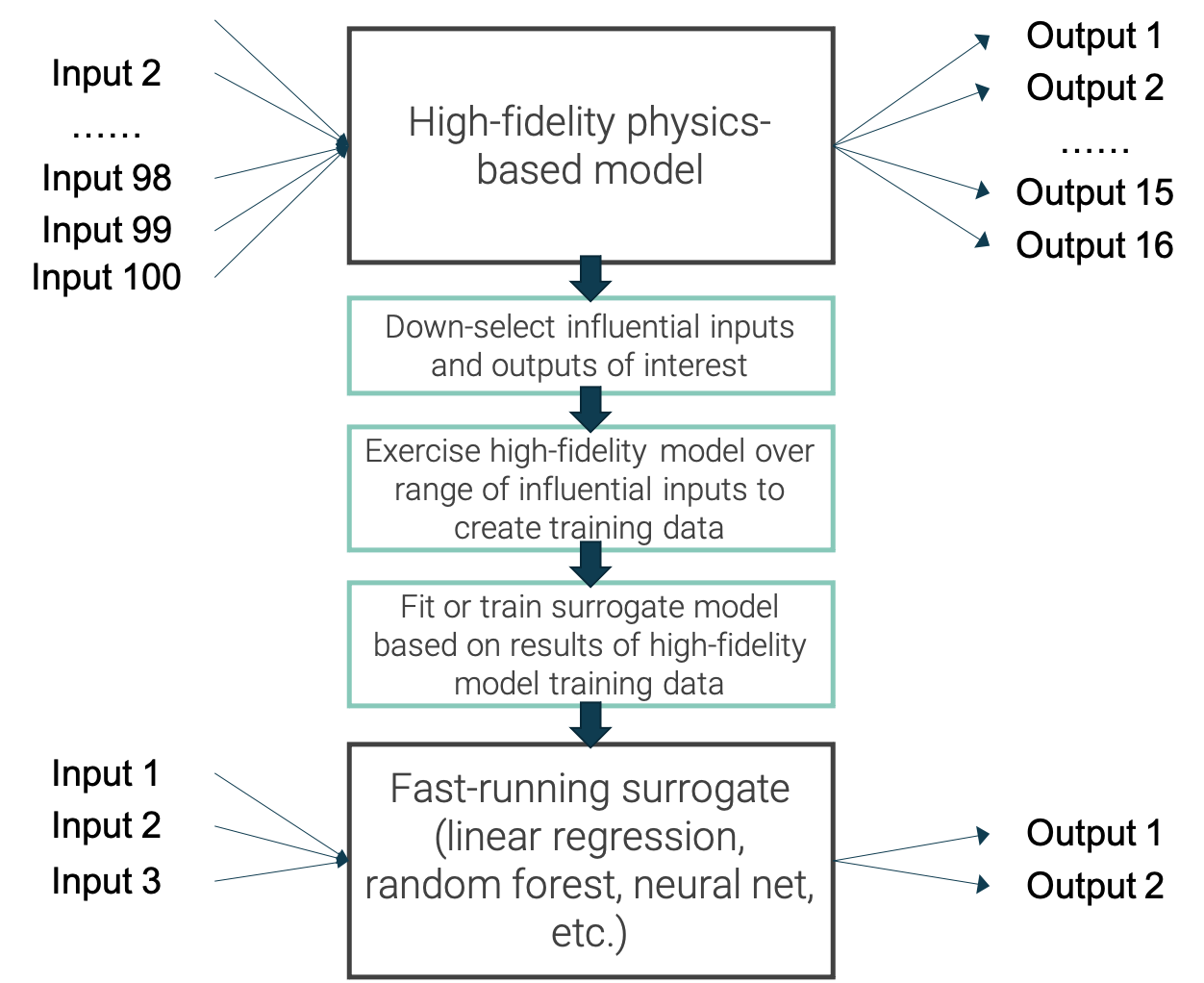

Surrogate model training & evaluation

• DoE table used to define inputs and generate training points
• TAITherm analysis generates results for each point
• Monitors track outputs for training points
• Training data is assigned to the Python environment for surrogate model training
• Users can select surrogate model types of interest or let CoTherm automatically choose the best
• Plots show the accuracy of the surrogate model

Sensitivity Analysis

• Sensitivity analysis can be automatically generated based on DoE results from a high-fidelity model or surrogate model evaluation.
• Sensitivity metrics can be stored in the CoTherm log or plotted
• Custom analysis can easily be added to the base process
