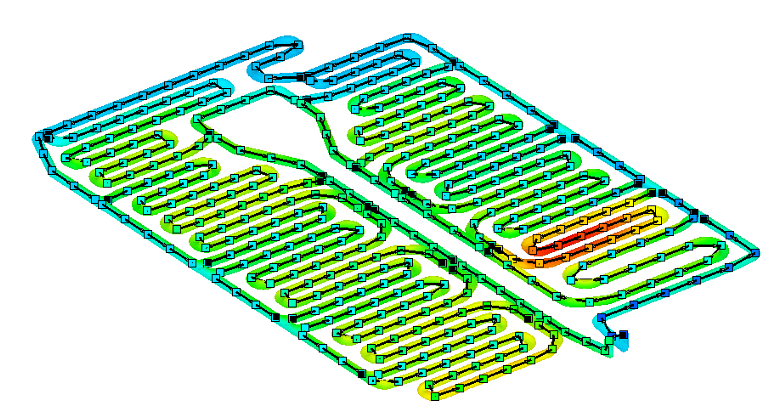

TAITherm Battery Extension: Solver Acceleration

• Run high-fidelity, full-vehicle models with full battery packs
• Up to 300x faster than previous versions
• Virtually no limit on the number of cells
• Simplified model setup
• Improved results file format

.

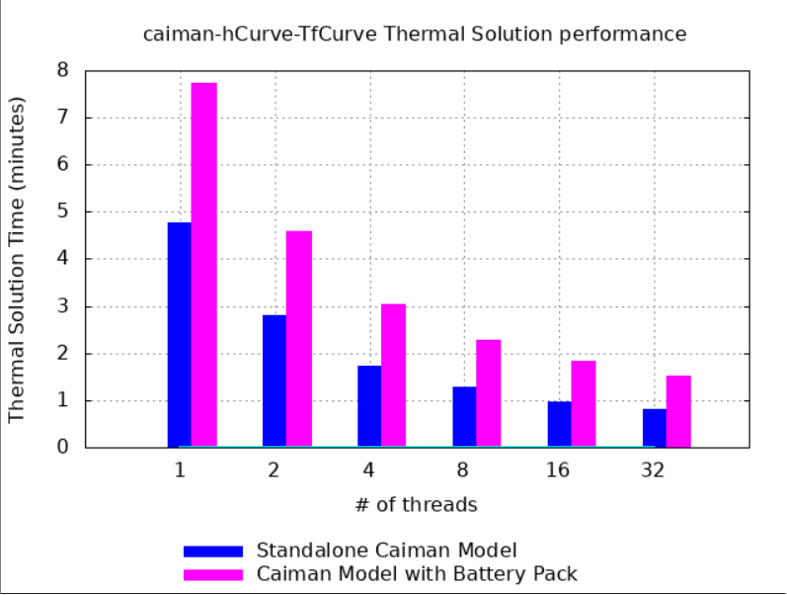

Face-to-Face Thermal Links Speed

• Compute connections using shared or distributed memory parallel
• New option to utilize kdtree search space
• Up to 50x faster on 8 CPU than previous serial version

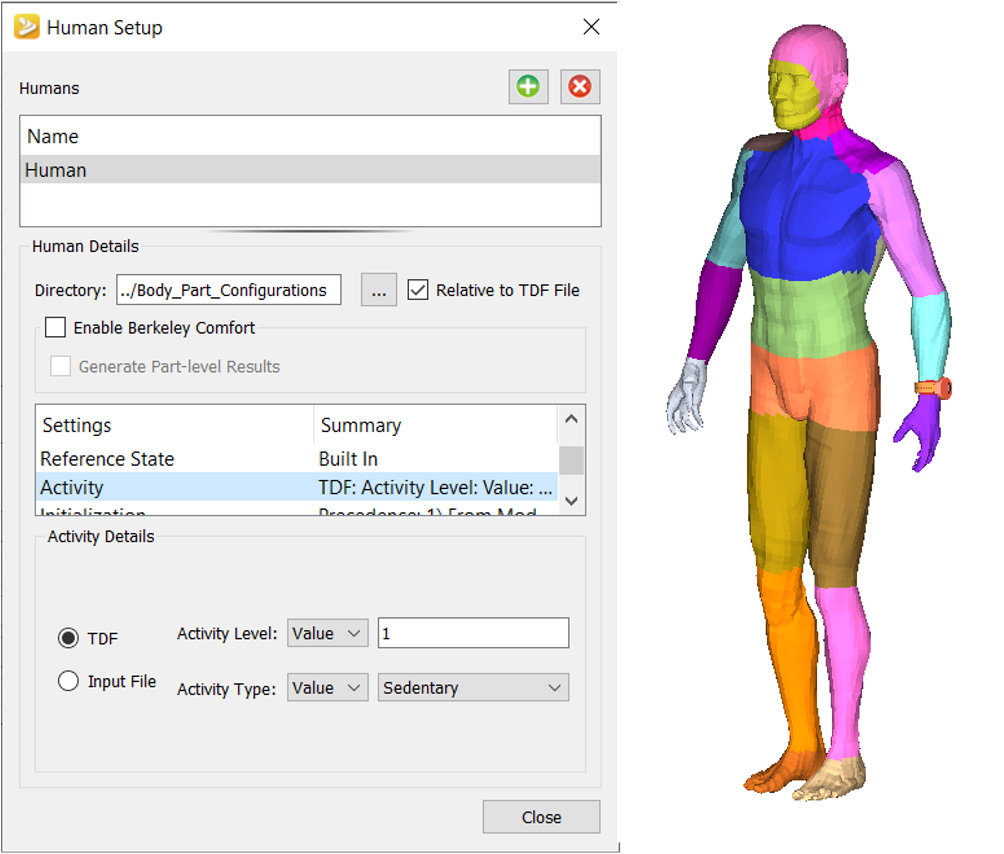

Faster Human Setup and Automation

• Activity in Human Setup
• Assembly not required
• Automate adding and removing humans via TDFIO
• Post Process metabolic and respiration heating
• Higher accuracy using default skin blood flow model (changed default skin blood flow model from Wissler to Fiala)

Continued Graphics Migration

• Feature edges
• Muffler impingement visualization
• Spatial data visualization
• Compass support to coordinate system axis
• Pyranometer location visualization

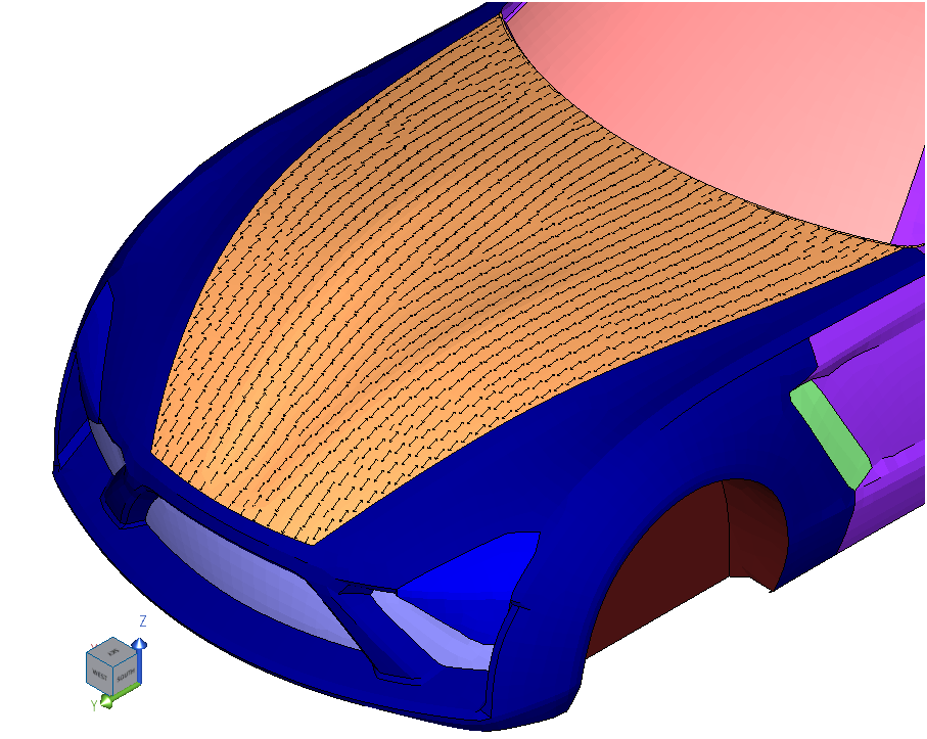

• Aerodynamic convection nose indicator point visualization
• Aerodynamic convection airfoil indicator line visualization
• User-defined waterline for BRDF Rendering
• Improved performance visualizing Fluid Streams / Exhaust Streams

Version 2022.2.1

Bug Fixes

• Bug 7460: Poor responsiveness with Advanced graphics model interaction
